Description

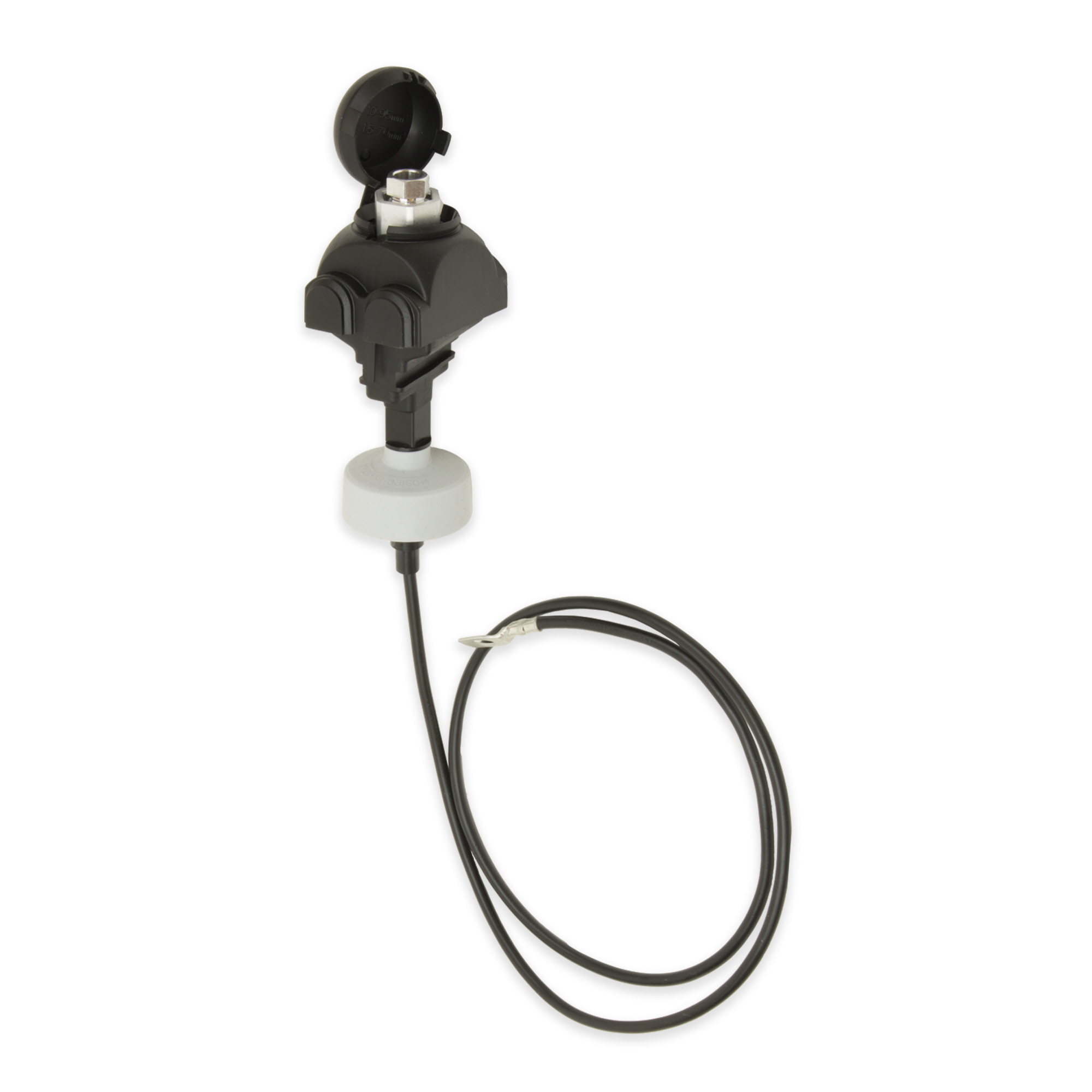

The design of SE 46.275-15 enables installation on insulated conductor and branch connection, the same connector is used for both. Connector can be installed on insulated Al conductors with cross section range 10 – 95 mm² and Cu conductors with cross section range 1.5 – 70 mm² and branch connection with the same range of conductors. The surge arrester comes with earthing conductor which is 6 mm² Cu wire (1 m) and equipped with M8 cable lug.

• High resistance to climatic stresses
• Optimised electrical performance
• Long creepage distance
• Maintenance-free
